    Industrial Single Acting Hydraulic Cylinder Seals With Cut Lip

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : KL33
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 100,000 pcs /months
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

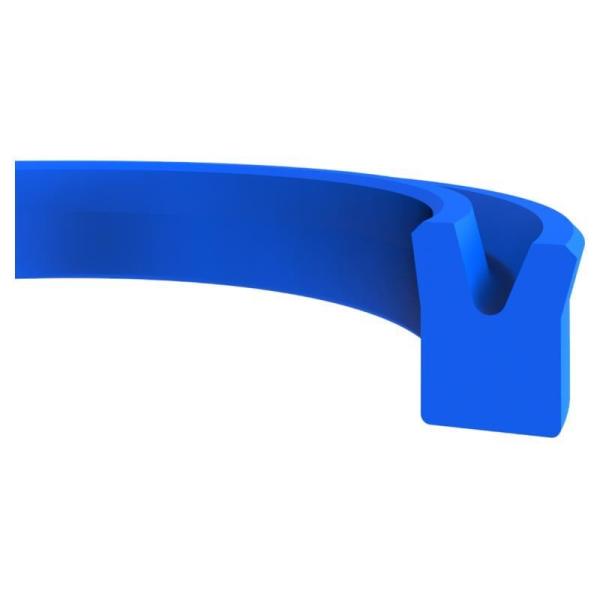

    Industrial Single Acting Hydraulic Cylinder Seals With Cut Lip

    Single Acting Piston Seal With Cut Lip Design For Use In Hydraulic Applications And Supplying Thin Oil Fim

    KL33 is a single acting piston seal with cut lip design for use in hydraulic applications and supplying thin oil fim.

    Advantages

    • Superior static and dynamic sealing effect
    • Wide range of dimensions
    • Easy installation into closed grooves
    • Economical sealing solution
    • Simple design suitable with many standard cylinders

    Area of Application

    • Agricultural machinery
    • Presses
    • Construction machinery
    • Loading platforms
    • Injection moulding machines
    • Forklifts
    • Standard industrial cylinders
    Industrial Single Acting Hydraulic Cylinder Seals With Cut Lip
    D (H10) d (h11) L (+0.2/-0) H C MATERIAL
    KL33-012 12 7 3.05 2.55 2.5 NBR
    KL33-012/1 12.5 4.5 4.5 4 4 NBR
    KL33-012/1 PU 12.5 4.5 4.5 4 4 PU
    KL33-012/2 12.7 6.35 5.2 4.76 3 NBR
    KL33-012/2 PU 12.7 6.35 5.2 4.76 3 PU
    KL33-012/4 12 6 4.5 4 3 NBR
    KL33-013 13.8 8.6 3.3 2.8 2.5 NBR
    KL33-013 PU 13.8 8.6 3.3 2.8 2.5 PU
    KL33-014 14 6 9 8 4 NBR
    KL33-014 PU 14 6 9 8 4 PU
    KL33-014/1 14 8 5 4.5 3 NBR
    KL33-014/1 PU 14 8 5 4.5 3 PU
    KL33-014/3 14 6 7 6 4 NBR
    KL33-014/3 PU 14 6 7 6 4 PU
    KL33-015 15 9 9 8 3 NBR
    KL33-015 PU 15 9 9 8 3 PU
    KL33-016 16 6 11 10 4.5 NBR
    KL33-016 PU 16 6 11 10 4.5 PU
    KL33-016/1 16 10 4.5 4 3 NBR
    KL33-016/1 PU 16 10 4.5 4 3 PU
    KL33-016/2 16 10 6.5 5.5 3 NBR
    KL33-016/2 PU 16 10 6.5 5.5 3 PU
    KL33-016/3 16 9 6.5 5.5 3.5 NBR
    KL33-016/3 PU 16 9 6.5 5.5 3.5 PU
    KL33-016/4 16 10 9 8 3 NBR
    KL33-016/4 PU 16 10 9 8 3 PU
    KL33-016/5 16 8 6.5 5.5 4 NBR
    KL33-016/5 PU 16 8 6.5 5.5 4 PU
    KL33-016/7 PU 16 11 4 3.5 3 PU
    KL33-017 17.46 12.05 3.5 3.17 3 NBR
    KL33-017 PU 17.46 12.05 3.5 3.17 3 PU
    KL33-019 19.05 12.7 3.5 3.17 3 NBR
    KL33-019 PU 19.05 12.7 3.5 3.17 3 PU
    KL33-020 20 14 6.5 5.5 3 NBR
    KL33-020 PU 20 14 6.5 5.5 3 PU
    KL33-020/1 20 14 4.7 4.2 3 NBR
    KL33-020/1 PU 20 14 4.7 4.2 3 PU
    KL33-020/3 20 12 6.5 5.5 4 NBR
    KL33-020/3 PU 20 12 6.5 5.5 4 PU
    KL33-020/4 20.63 14.28 7 6.35 3 NBR
    KL33-020/4 PU 20.63 14.28 7 6.35 3 PU
    KL33-022 22 13 8 7 4 NBR
    KL33-022 PU 22 13 8 7 4 PU
    KL33-022/1 22 10 9 8 5 NBR
    KL33-022/1 PU 22 10 9 8 5 PU
    KL33-022/2 22.22 12.7 7 6.35 4 NBR
    KL33-022/2 PU 22.22 12.7 7 6.35 4 PU
    KL33-022/3 22 16 6.5 5.5 3 NBR
    KL33-022/3 PU 22 16 6.5 5.5 3 PU
    KL33-022/4 22 16 4.5 4 3 NBR
    KL33-022/4 PU 22 16 4.5 4 3 PU
    KL33-025/1 25 18 6 5 3.5 NBR
    KL33-025/2 25 19 3.5 3 3 NBR
    KL33-025/2 PU 25 19 3.5 3 3 PU
    KL33-025/3 25 19 7 6 3 NBR
    KL33-025/3 PU 25 19 7 6 3 PU
    KL33-025/5 25 15 6 5 4.5 NBR
    KL33-025/5 PU 25 15 6 5 4.5 PU
    KL33-025/6 25 17 6.5 5.5 4 NBR
    KL33-025/6 PU 25 17 6.5 5.5 4 PU
    KL33-026 26 18 8 7 4 NBR
    KL33-026 PU 26 18 8 7 4 PU
    KL33-026/2 26 18 6.5 5.5 4 NBR
    KL33-026/2 PU 26 18 6.5 5.5 4 PU
    KL33-026/3 26.99 17.46 7 6.35 4 NBR
    KL33-026/3 PU 26.99 17.46 7 6.35 4 PU
    KL33-028 28 16 10 9 5 NBR
    KL33-028 PU 28 16 10 9 5 PU
    KL33-028/1 28.57 19.05 7 6.35 4 NBR
    KL33-028/1 PU 28.57 19.05 7 6.35 4 PU
    KL33-030 30 22 7 6 4 NBR
    KL33-030 PU 30 22 7 6 4 PU
    KL33-030/1 30 20 8 7 4.5 NBR
    KL33-030/1 PU 30 20 8 7 4.5 PU
    KL33-030/2 30 15 11 10 5.5 NBR
    KL33-030/2 PU 30 15 11 10 5.5 PU
    KL33-030/4 30 15 9 8 5.5 NBR
    KL33-031/1 31.75 19.05 7 6.35 6 NBR
    KL33-031/1 PU 31.75 19.05 7 6.35 6 PU
    KL33-031/2 31.75 19.05 8.7 7.93 6 NBR
    KL33-031/2 PU 31.75 19.05 8.7 7.93 6 PU
    KL33-032 32 24 6.5 5.5 4 NBR
    KL33-032 PU 32 24 6.5 5.5 4 PU
    KL33-032/1 32 22 8 7 4.5 NBR
    KL33-032/1 PU 32 22 8 7 4.5 PU
    KL33-032/2 32 22 6 5 4.5 NBR
    KL33-032/2 PU 32 22 6 5 4.5 PU
    KL33-034 34.92 22.22 7 6.35 6 NBR
    KL33-034 PU 34.92 22.22 7 6.35 6 PU
    KL33-035 35 25 7.5 6.5 4.5 NBR
    KL33-035 PU 35 25 7.5 6.5 4.5 PU
    KL33-035/1 35 25 8 7 4.5 NBR
    KL33-035/1 PU 35 25 8 7 4.5 PU
    KL33-035/2 35 27 11 10 4 NBR
    KL33-035/2 PU 35 27 11 10 4 PU
    KL33-035/3 35 25 9 8 4.5 NBR
    KL33-035/3 PU 35 25 9 8 4.5 PU
    KL33-035/4 35 20 11 10 5.5 NBR
    KL33-035/4 PU 35 20 11 10 5.5 PU
