    KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : KL63
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 100,000 pcs /months
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    KL63 Carbon Steel PTFE Bronze Composite Bushings Low Friction Low Abrasion

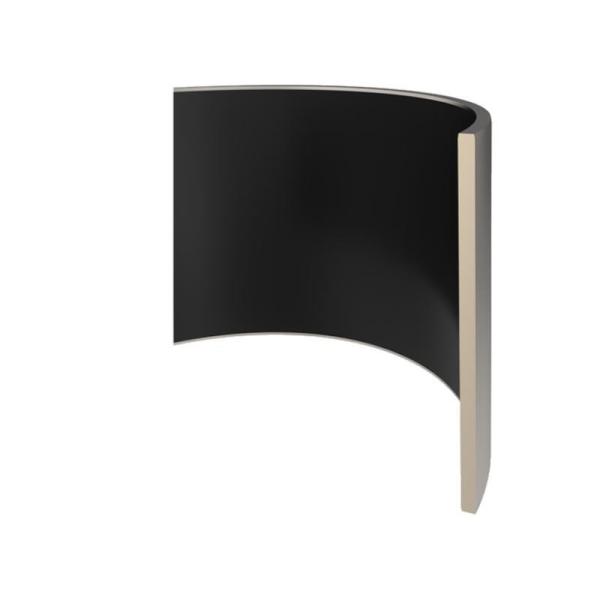

    KL63 is a composite bushing consists of carbon steel, bronze, and PTFE. KL63 is a self-lubricating bushing which provides low friction and low abrasion.

    Advantages

    • Suitable for dry applications

    • Abrasion Resistance

    • Low friction

    • Long service life

    • Good thermal properties and dimensional stability

    • Optimum oil film

    • Superior load bearing capacity

    Area of Application

    • Hydraulic and Pneumatic Cylinders


    • Applications with high radial load


    d (f7)D (H7)L (+0.2/-0)MATERIAL
    KL63-0066810Steel - Teflon - Bushing
    KL63-00881010Steel - Teflon - Bushing
    KL63-008/28108Steel - Teflon - Bushing
    KL63-010101215Steel - Teflon - Bushing
    KL63-012121415Steel - Teflon - Bushing
    KL63-012/1121420Steel - Teflon - Bushing
    KL63-012/2121410Steel - Teflon - Bushing
    KL63-016161815Steel - Teflon - Bushing
    KL63-016/1161812Steel - Teflon - Bushing
    KL63-017171920Steel - Teflon - Bushing
    KL63-017/1171925Steel - Teflon - Bushing
    KL63-020202315Steel - Teflon - Bushing
    KL63-020/1202320Steel - Teflon - Bushing
    KL63-020/2202330Steel - Teflon - Bushing
    KL63-020/4202325Steel - Teflon - Bushing
    KL63-020/5202215Steel - Teflon - Bushing
    KL63-022222526.5Steel - Teflon - Bushing
    KL63-025252830Steel - Teflon - Bushing
    KL63-025/1252820Steel - Teflon - Bushing
    KL63-025/2252825Steel - Teflon - Bushing
    KL63-028283230Steel - Teflon - Bushing
    KL63-028/1283225Steel - Teflon - Bushing
    KL63-030303430Steel - Teflon - Bushing
    KL63-030/1303420Steel - Teflon - Bushing
    KL63-030/2303415Steel - Teflon - Bushing
    KL63-032323640Steel - Teflon - Bushing
    KL63-032/1323630Steel - Teflon - Bushing
    KL63-035354060Steel - Teflon - Bushing
    KL63-036364030Steel - Teflon - Bushing
    KL63-038384238Steel - Teflon - Bushing
    KL63-040404420Steel - Teflon - Bushing
    KL63-040/1404425Steel - Teflon - Bushing
    KL63-040/2404430Steel - Teflon - Bushing
    KL63-040/3404530Steel - Teflon - Bushing
    KL63-040/4404440Steel - Teflon - Bushing
    KL63-040/5404520Steel - Teflon - Bushing
    KL63-045455030Steel - Teflon - Bushing
    KL63-045/1455060Steel - Teflon - Bushing
    KL63-045/2455050Steel - Teflon - Bushing
    KL63-050505530Steel - Teflon - Bushing
    KL63-050/1505520Steel - Teflon - Bushing
    KL63-050/2505540Steel - Teflon - Bushing
    KL63-050/3505550Steel - Teflon - Bushing
    KL63-055556060Steel - Teflon - Bushing
    KL63-055/1556030Steel - Teflon - Bushing
    KL63-055/2556040Steel - Teflon - Bushing
    KL63-060606520Steel - Teflon - Bushing
    KL63-060/1606530Steel - Teflon - Bushing
    KL63-060/2606540Steel - Teflon - Bushing
    KL63-060/3606550Steel - Teflon - Bushing
    KL63-060/4606560Steel - Teflon - Bushing
    KL63-065657050Steel - Teflon - Bushing
    KL63-065/1657030Steel - Teflon - Bushing
    KL63-065/2657060Steel - Teflon - Bushing
    KL63-065/3657040Steel - Teflon - Bushing
    KL63-070707530Steel - Teflon - Bushing
    KL63-070/1707540Steel - Teflon - Bushing
    KL63-070/2707550Steel - Teflon - Bushing
    KL63-070/3707580Steel - Teflon - Bushing
    KL63-070/4707535Steel - Teflon - Bushing
    KL63-070/5707515Steel - Teflon - Bushing
    KL63-075758030Steel - Teflon - Bushing
    KL63-075/1758040Steel - Teflon - Bushing
    KL63-075/2758035Steel - Teflon - Bushing
    KL63-075/3758060Steel - Teflon - Bushing
    KL63-080808530Steel - Teflon - Bushing
    KL63-080/1808540Steel - Teflon - Bushing
    KL63-080/2808535Steel - Teflon - Bushing
    KL63-080/3808560Steel - Teflon - Bushing
    KL63-085859030Steel - Teflon - Bushing
    KL63-085/1859040Steel - Teflon - Bushing
    KL63-085/2859035Steel - Teflon - Bushing
    KL63-085/3859060Steel - Teflon - Bushing
    KL63-090909530Steel - Teflon - Bushing
    KL63-090/1909540Steel - Teflon - Bushing
    KL63-090/2909520Steel - Teflon - Bushing
    KL63-090/3909535Steel - Teflon - Bushing
    KL63-090/4909550Steel - Teflon - Bushing
    KL63-090/5909560Steel - Teflon - Bushing
    KL63-0959510030Steel - Teflon - Bushing
    KL63-095/19510040Steel - Teflon - Bushing
    KL63-095/29510060Steel - Teflon - Bushing
    KL63-095/39510050Steel - Teflon - Bushing
    KL63-10010010530Steel - Teflon - Bushing
    KL63-100/110010535Steel - Teflon - Bushing
    KL63-100/210010550Steel - Teflon - Bushing
    KL63-100/310010560Steel - Teflon - Bushing
    KL63-100/410010540Steel - Teflon - Bushing
    KL63-100/510010520Steel - Teflon - Bushing
    KL63-10510511060Steel - Teflon - Bushing
    KL63-105/110511050Steel - Teflon - Bushing
    KL63-105/210511035Steel - Teflon - Bushing
    KL63-105/310511040Steel - Teflon - Bushing
    KL63-11011011550Steel - Teflon - Bushing
    KL63-110/111011555Steel - Teflon - Bushing
    KL63-110/211011535Steel - Teflon - Bushing
    KL63-110/311011540Steel - Teflon - Bushing
    KL63-110/411011530Steel - Teflon - Bushing
    KL63-110/511011560Steel - Teflon - Bushing
    KL63-11511512035Steel - Teflon - Bushing
    KL63-115/111512060Steel - Teflon - Bushing
    KL63-115/211512050Steel - Teflon - Bushing
    KL63-115/411512045Steel - Teflon - Bushing
    KL63-12012012535Steel - Teflon - Bushing
    KL63-120/112012545Steel - Teflon - Bushing
    KL63-120/212012520Steel - Teflon - Bushing
    KL63-120/312012540Steel - Teflon - Bushing
    KL63-120/412012550Steel - Teflon - Bushing
    KL63-120/512012560Steel - Teflon - Bushing
    KL63-12512513050Steel - Teflon - Bushing
    KL63-13013013550Steel - Teflon - Bushing
    KL63-130/113013560Steel - Teflon - Bushing
    KL63-130/213013540Steel - Teflon - Bushing
    KL63-130/3130135100Steel - Teflon - Bushing
    KL63-135135140100Steel - Teflon - Bushing
    KL63-14014014540Steel - Teflon - Bushing
    KL63-140/114014560Steel - Teflon - Bushing
    KL63-140/214014550Steel - Teflon - Bushing
    KL63-140/314014555Steel - Teflon - Bushing
    KL63-14514515060Steel - Teflon - Bushing
    KL63-15015015540Steel - Teflon - Bushing
    KL63-150/115015550Steel - Teflon - Bushing
    KL63-150/215015560Steel - Teflon - Bushing
    KL63-16016016540Steel - Teflon - Bushing
    KL63-160/116016580Steel - Teflon - Bushing
    KL63-160/216016550Steel - Teflon - Bushing
    KL63-160/316016560Steel - Teflon - Bushing
    KL63-18018018560Steel - Teflon - Bushing
    KL63-21021021560Steel - Teflon - Bushing
    KL63-210/121021580Steel - Teflon - Bushing
