KL106 wipers prevent that foreign particles from outer environment penetrate into the cylinder in the hydraulic applications, and reduce the oil film thickness. In highly contaminated systems, all effects (water, mud, dust, etc.) coming from the external environment are avoided with the special cap design. All effects in systems with high pollution from outer environment (water, mud, dust, etc.) can be prevented thanks to the special head design. KL106, used in heavy duty applications with large sealing gaps, has superior protection feature.

Advantages

Area of Application

• Iron and steel industry

• Injection moulding machines

• Presses

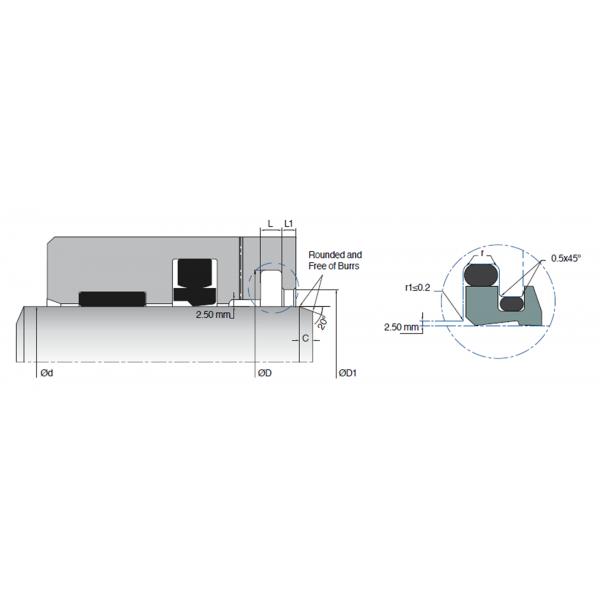

	d (f8)	D (H9)	D1 (H9)	L (+0.2/-0)	L1 (+0.2/-0)	r	MATERIAL
KL106-100	100	122.2	110.7	6.3	4.2	1.2	PTFE
KL106-110	110	132.2	120.7	6.3	4.2	1.2	PTFE
KL106-120	120	142.2	130.7	6.3	4.2	1.2	PTFE
KL106-130	130	152.2	140.7	6.3	4.2	1.2	PTFE
KL106-140	140	162.2	150.7	6.3	4.2	1.2	PTFE
KL106-150	150	172.2	160.7	6.3	4.2	1.2	PTFE
KL106-160	160	182.2	170.7	6.3	4.2	1.2	PTFE
KL106-170	170	192.2	180.7	6.3	4.2	1.2	PTFE
KL106-180	180	202.2	190.7	6.3	4.2	1.2	PTFE
KL106-190	190	212.2	200.7	6.3	4.2	1.2	PTFE
KL106-200	200	222.2	210.7	6.3	4.2	1.2	PTFE
KL106-220	220	242.2	230.7	6.3	4.2	1.2	PTFE
KL106-380	380	413	395.1	8.1	6.3	1.2	PTFE

Shaanxi Kelong New Material Technology Co., Ltd. was established in 1996. It is a high-tech enterprise, integrating R&D, production and sales. The main products are combined sealing products, hydraulic hose and Long wall Chock Haulers. The products produced are widely used in industry, coal, aerospace, high-speed rail, construction machinery, wind power and other fields.

The company's has plant an area of 133,000 square meters. The sealing products adopt the equipment and production technology of DMH Company in Austria. Hydraulic hose production base adopts a complete set of equipment imported from Italy, with an annual output of more than 15 million meters of various hydraulic hoses. Our total annual output value more than 40 millions of dollars.

There are more than 500 employees, including nearly 180 engineers and technicians. Has an independent R&D center to support OEM and ODM projects. The annual R&D investment accounts for more than 7% of the total revenue of the year. At present, it has 15 scientific and technological achievements, 8 invention patents and 36 patents. The main sales markets of our products are Asia, North America, Western Europe, Oceania and other regions, with ISO system and IRIS certificates.

We take scientific and technological innovation and improve the scientific and technological content of products as our own responsibility, and strive to keep technology and products at the forefront of the industry. We look forward to working with you.
