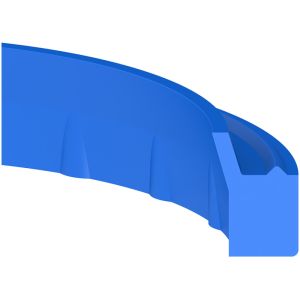

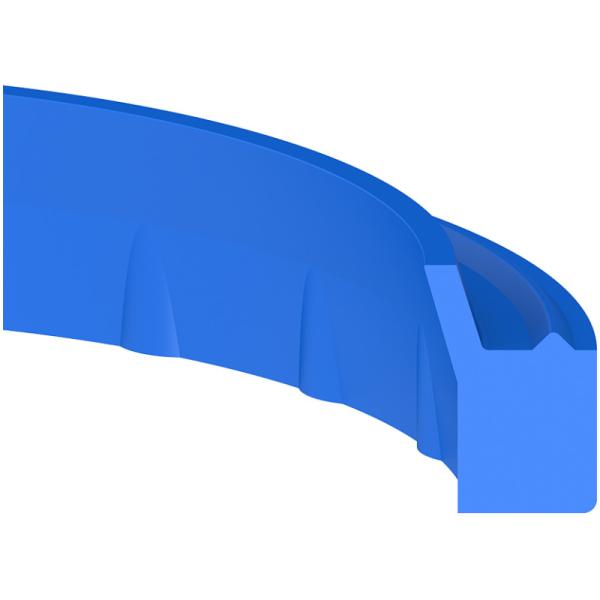

KL101 polyurethane wipers prevent the foreign particles pass into the hydraulic cylinders

They have a superior wiping effect on the rod thanks to improved lip design. Also second static lip on the external side face keeps the wiper tight in the housing and serves as an static seal.

Advantages

Area of Application

• Agricultural machinery

• Construction machinery

• Telescopic cylinders

• Cranes

• Standard industrial cylinders

• Mining industry

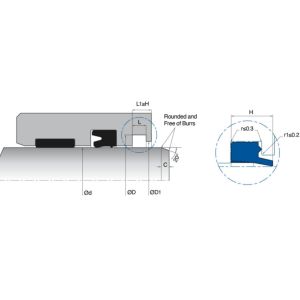

	d (f8)	D (H10)	D1 (H11)	L (+0.2/-0)	H	MATERIAL
KL101-018	18	26.6	21	5.3	7	PU
KL101-020	20	28.6	23	5.3	7	PU
KL101-022	22	30.6	25	5.3	7	PU
KL101-025	25	33.6	28	5.3	7	PU
KL101-030	30	38.6	33.2	5.3	7	PU
KL101-035	35	43.6	38	5.3	7	PU
KL101-036	36	44.6	39	5.3	7	PU
KL101-040	40	48.6	43	5.3	7	PU
KL101-045	45	55.6	48.2	5.3	7	PU
KL101-050	50	60.6	53.2	5.3	7	PU
KL101-055	55	65.6	58.2	5.3	7	PU
KL101-060	60	70.6	63	5.3	7	PU
KL101-065	65	75.6	68.2	5.3	7	PU
KL101-075	75	87.2	80.8	7.3	12	PU
KL101-080	80	92.2	86	7.3	12	PU
KL101-090	90	102.2	96	7.3	12	PU
KL101-100	100	112.2	106	7.3	12	PU

Shaanxi Kelong New Material Technology Co., Ltd. was established in 1996. It is a high-tech enterprise, integrating R&D, production and sales. The main products are combined sealing products, hydraulic hose and Long wall Chock Haulers. The products produced are widely used in industry, coal, aerospace, high-speed rail, construction machinery, wind power and other fields.

The company's has plant an area of 133,000 square meters. The sealing products adopt the equipment and production technology of DMH Company in Austria. Hydraulic hose production base adopts a complete set of equipment imported from Italy, with an annual output of more than 15 million meters of various hydraulic hoses. Our total annual output value more than 40 millions of dollars.

There are more than 500 employees, including nearly 180 engineers and technicians. Has an independent R&D center to support OEM and ODM projects. The annual R&D investment accounts for more than 7% of the total revenue of the year. At present, it has 15 scientific and technological achievements, 8 invention patents and 36 patents. The main sales markets of our products are Asia, North America, Western Europe, Oceania and other regions, with ISO system and IRIS certificates.

We take scientific and technological innovation and improve the scientific and technological content of products as our own responsibility, and strive to keep technology and products at the forefront of the industry. We look forward to working with you.
