    KL128 NBR PTFE Piston Seal Ring High Wear Resistance Low Friction

    Ask Lasest Price
    Brand Name : KELONG
    Model Number : KL-128
    Payment Terms : L/C, T/T
    Supply Ability : 100,000 pcs /months
    Delivery Time : 15
    • Product Details
    • Company Profile

    KL128 NBR PTFE Piston Seal Ring High Wear Resistance Low Friction

    KL128 - Piston Seal High Wear Resistance Low Friction And Stick-Slip Free Good Dynamic And Static Sealing


    KL128 is a double acting rotary sealing element consisting of a PTFE ring and an energizer elastomer o-ring. It provides high performance with the superior properties of PTFE material in piston type pressurized rotary sealing applications.


    PROPERTIES:

    • Low friction, free of stick slip.


    • High abrasion resistance.


    • Wide temperature range.


    • Good thermal conductivity.


    • Low wear and high extrusion resistance.


    • Wide fluid application range.


    • Resistance against cold flow.

    Advantages

    • High wear resistance

    • Low friction and stick-slip free

    • Good dynamic and static sealing

    • Long service life

    • High extrusion resistance

    • High resistance to chemicals and high temperature with use of different o-ring material

    Area of Application

    • Rotary tower systems

    • Rotary joints

    • Hydraulic distributors

    • Mobile machinery

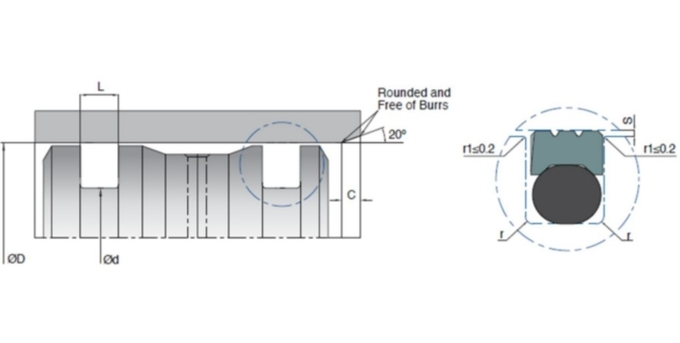

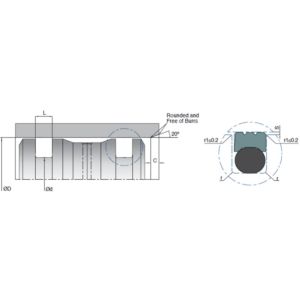

    D (H8)d (h9)L (+0.2/-0)rCO-RingMATERIAL
    KL128-0151510.12.20.439.75x1.78PTFE
    NBR
    KL128-0161611.12.20.4310.82x1.78PTFE
    NBR
    KL128-0202015.12.20.4315.20x1.78PTFE
    NBR
    KL128-0252520.12.20.4319.00x1.78PTFE
    NBR
    KL128-0282820.53.20.64.520.29x2.62PTFE
    NBR
    KL128-0303025.12.20.4325.12x1.78PTFE
    NBR
    KL128-0323227.12.20.4326.70x1.78PTFE
    NBR
    KL128-032/13224.53.20.64.523.81x2.62PTFE
    NBR
    KL128-0353530.12.20.4329.87x1.78PTFE
    NBR
    KL128-0404032.53.20.64.531.42x2.62PTFE
    NBR
    KL128-040/140294.20.85.528.17x3.53PTFE
    NBR
    KL128-0454537.53.20.64.536.17x2.62PTFE
    NBR
    KL128-0505042.53.20.64.542.52x2.62PTFE
    NBR
    KL128-0525244.53.20.64.544.12x2.62PTFE
    NBR
    KL128-0555547.53.20.64.547.29x2.62PTFE
    NBR
    KL128-0606052.53.20.64.552.07x2.62PTFE
    NBR
    KL128-0636355.53.20.64.553.65x2.62PTFE
    NBR
    KL128-0656557.53.20.64.556.82x2.62PTFE
    NBR
    KL128-0707062.53.20.64.561.60x2.62PTFE
    NBR
    KL128-0757567.53.20.64.566.35x2.62PTFE
    NBR
    KL128-08080694.20.85.568.26x3.53PTFE
    NBR
    KL128-080/18064.56.31.2662.87x5.33PTFE
    NBR
    KL128-08585744.20.85.573.03x3.53PTFE
    NBR
    KL128-09090794.20.85.578.97x3.53PTFE
    NBR
    KL128-09595844.20.85.582.14x3.53PTFE
    NBR
    KL128-100100894.20.85.588.50x3.53PTFE
    NBR
    KL128-105105944.20.85.591.67x3.53PTFE
    NBR
    KL128-110110994.20.85.598.02x3.53PTFE
    NBR
    KL128-1151151044.20.85.5101.20x3.53PTFE
    NBR
    KL128-1201201094.20.85.5107.54x3.53PTFE
    NBR
    KL128-1251251144.20.85.5113.90x3.53PTFE
    NBR
    KL128-1301301194.20.85.5117.07x3.53PTFE
    NBR
    KL128-135135119.56.31.26117.48x5.33PTFE
    NBR
    KL128-135/11351244.20.85.5120.25x3.53PTFE
    NBR
    KL128-140140124.56.31.26123.80x5.33PTFE
    NBR
    KL128-1451451344.20.85.5132.94x3.53PTFE
    NBR
    KL128-150150134.56.31.26133.35x5.33PTFE
    NBR
    KL128-1551551444.20.85.5142.47x3.53PTFE
    NBR
    KL128-160160144.56.31.26142.24x5.33PTFE
    NBR
    KL128-170170154.56.31.26151.77x5.33PTFE
    NBR
    KL128-175175159.56.31.26155.00x5.33PTFE
    NBR
    KL128-180180164.56.31.26161.30x5.33PTFE
    NBR
    KL128-190190174.56.31.26170.82x5.33PTFE
    NBR
    KL128-200200184.56.31.26183.52x5.33PTFE
    NBR
    KL128-210210194.56.31.26189.87x5.33PTFE
    NBR
    KL128-220220204.56.31.26202.57x5.33PTFE
    NBR
    KL128-230230214.56.31.26208.92x5.33PTFE
    NBR
    KL128-240240224.56.31.26221.62x5.33PTFE
    NBR
    KL128-250250234.56.31.26234.32x5.33PTFE
    NBR
    KL128-260260244.56.31.26247.02x5.33PTFE
    NBR
    KL128-280280264.56.31.26266.07x5.33PTFE
    NBR
    KL128-300300284.56.31.26278.77x5.33PTFE
    NBR
