Hydraulic Cylinder FKM Rubber V-Ring Water Seal NBR Rubber V-Seal VS Rotary Shaft Seal Ring

Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

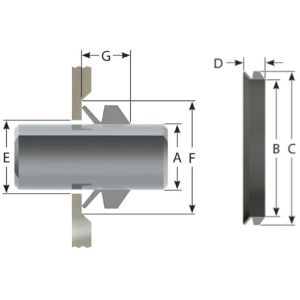

VS Style Size Chart

		Seal Dimensions			Housing Dimensions
	A	B	C	D	E	F	G
Part Number	Shaft Diameter	I.D.	O.D	Height	I.D.	O.D	Width
VS 005	4.50-5.50	4.00	8.00	5.20	A+1.00	A+6.00	4.50±0.40
VS 006	5.50 ·6.50	5.00	9.00	5.20	A+1.00	A+6.00	4.50±0.40
VS 007	6.50-8.00	6.00	10.00	5.20	A+1.00	A+6.00	4.50±0.40
VS 008	8.00-9.50	7.00	11.00	5.20	A+1.00	A+6.00	4.50±0.40
VS 010	9.50-11.50	9.00	15.00	7.70	A+2.00	A+9.00	6.70±0.60
VS 012	11.50-13.50	10.50	16.50	7.70	A+ 2.00	A+9.00	6.70±0.60
VS 014	13.50-15.50	12.50	18.50	7.70	A+2.00	A+9.00	6.70±0.60
VS 016	15.50-17.50	14.00	20.00	7.70	A+2.00	A+9.00	6.70±0.60
VS 018	17.50-19.00	16.00	22.00	7.70	A+2.00	A+9.00	6.70± 0.60
VS 020	19.00-21.00	18.00	26.00	10.50	A+2.00	A+ 12.00	9.00±0.80
VS 022	21.00-24.00	20.00	28.00	10.50	A+2.00	A+ 12.00	9.00±0.80
VS 025	24.00-27.00	22.00	30.00	10.50	A+2.00	A+12.00	9.00±0.80
VS 028	27.00-29.00	25.00	33.00	10.50	A+3.00	A+12.00	9.00±0.80
VS 030	29.00-31.00	27.00	35.00	10.50	A+ 3.00	A+ 12.00	9.00± 0.80
VS 032	31.00-33.00	29.00	37.00	10.50	A+3.00	A+ 12.00	9.00±0.80
VS 035	33.00-36.00	31.00	39.00	10.50	A+ 3.00	A+ 12.00	9.00±0.80
VS 038	36.00-38.00	34.00	42.00	10.50	A + 3.00	A+ 12.00	9.00±0.80
VS 040	38.00-43.00	36.00	46.00	13.00	A+ 3.00	A+15.00	11.00±1.00
VS 045	43.00-48.00	40.00	50.00	13.00	A+3.00	A+15.00	11.00±1.00
VS 050	48.00-53.00	45.00	55.00	13.00	A+3.00	A+ 15.00	11.00±1.00
V5055	53.00-58.00	49.00	59.00	13.00	A+3.00	A+15.00	11.00±1.00
VS 060	58.00-63.00	54.00	64.00	13.00	A+ 3.00	A+ 15.00	11.00±1.00
VS 065	63.00-68.00	58.00	68.00	13.00	A+ 3.00	A+15.00	11.00±1.00
VS 070	68.00-73.00	63.00	75.00	15.50	A+4.00	A+ 18.00	13.50±1.20
VS 075	73.00-78.00	67.00	79.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 080	78.00-83.00	72.00	84.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 085	83.00-88.00	76.00	88.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 090	88.00-93.00	81.00	93.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 095	93.00-98.00	85.00	97.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 100	98.00-105.00	90.00	102.00	15.50	A+4.00	A+18.00	13.50±1.20
VS 110	105.00 ·115.00	99.00	113.00	18.00	A+4.00	A+21.00	15.50±1.50
VS 120	115.00-125.00	108.00	122.00	18.00	A+4.00	A+21.00	15.50±1.50
VS 130	125.00-135.00	117.00	131.00	18.00	A+4.00	A+ 21.00	15.50±1.50
VS 140	135.00-145.00	126.00	140.00	18.00	A+4.00	A+ 21.00	15.50±1.50
VS 150	145.00-155.00	135.00	149.00	18.00	A+4.00	A+ 21.00	15.50±1.50
VS 160	155.00 ·165.00	144.00	160.00	20.50	A+5.00	A+24.00	18.00±1.80
VS 170	165.00-175.00	153.00	169.00	20.50	A+5.00	A+ 24.00	18.00±1.80
VS 180	175.00-185.00	162.00	178.00	20.50	A+5.00	A+24.00	18.00±1.80
VS 190	185.00-195.00	171.00	187.00	20.50	A+5.00	A+24.00	18.00±1.80
VS 199	195.00-210.00	180.00	196.00	20.50	A+ 5.00	A+24.00	18.00±1.80
