    EN 856 4SH Steel Wire Spiral Hydraulic Hose Pipe With Solid Structure

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : EN856 4 SH
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 16,5600 meters /months
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

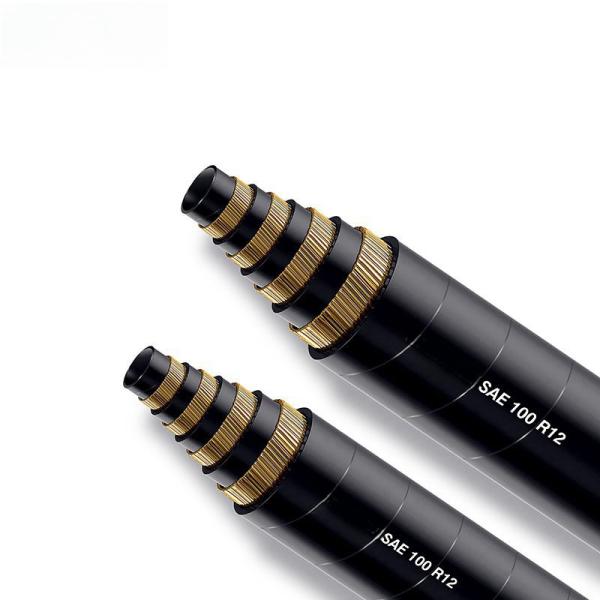

    EN 856 4SH Steel Wire Spiral Hydraulic Hose Pipe With Solid Structure

    EN 856 4SH steel wire spiraled hydraulic hose has higher working pressure performance, so it is perfectly suitable for extremely high pressure working conditions. It has excellent performance in delivering petroleum-based hydraulic fluids in the working temperature of -40 °C to +100 °C
    Features:
    ◆ work well in conveying oils
    ◆ resistant to abrasion, corrosion and oil
    ◆ resistant to high pressure
    ◆ corrosion, abrasion, weather and ozone resistant synthetic rubber and the appearance is cloth impression rubber.

    Material:
    Tube: black synthetic rubber
    Reinforcement: four layers of high tensile and high strength spiraled steel wire
    Cover: high quality black synthetic rubber
    Working temperature range: -40℃ to +100℃
    CommoditySpecification
    SAE 100R1,R2,R6,R7,R8,R9,R12,R13,R14,R15,R16,R17
    DIN EN8531SN,2SN,1ST,2ST
    DIN EN8564SH 4SP
    DIN EN8571SC,2SC
    The specification of EN 8564SH steel wire spiraled hydraulic hose
    Hose codeSizeDash sizeIDWDODWorking pressureProof pressureMin burst pressureMin bending
    radius
    Weight
    mminchminmaxminmaxminmaxMPaPsiMPaPsiMPaPsimmkg/m
    EN8564SH-01193/4-1218.619.827.629.231.433.042.060908712180168243602801.70
    EN8564SH-02251-1625.026.434.436.037.539.938.055107611020152220403402.50
    EN8564SH-0331.51-1/4-2031.433.040.942.943.947.132.54710659425130188504603.00
    EN85645H-04381-1/2-2437.739.349.849.851.955.129.04205588410116168205603.60
    EN8564SH-05512-3250.452.064.264.266.569.725.03625507250100145007005.00
