    Textile Two Wire Braid Hydraulic Hose Pipe Synthetic Rubber

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : KS1703
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 16,5600 meters /months
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

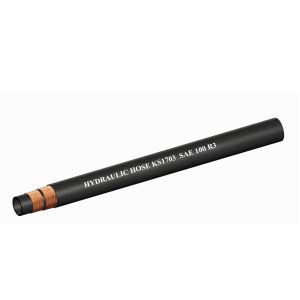

    Textile Two Wire Braid Hydraulic Hose Pipe Synthetic Rubber

    Two textile braids hydraulic hose meets SAE 100R3

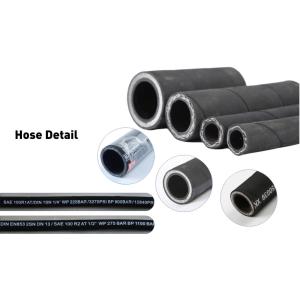

    TUBE:

    Oil-resistant synthetic rubber inner layer + textile braid + oil-resistant and weather-resistant synthetic rubber outer layer

    Reinforcement:Two textile braids

    INNER TUBE:oil resistant synthetic nitrile rubber
    REINFORCEMENT:single layer of steel wire braided

    COVER:Black, oil resistant, synthetic rubber.

    Note:Various covers available
    APPLICATION:

    Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 R2 R9 Type AT and performance requirementsof EN 853 1SN 2SN en856 4sp 4SH.

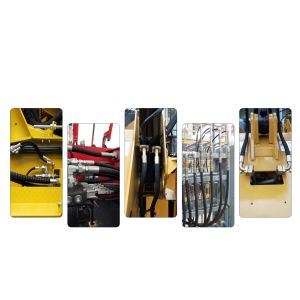

    Mine hydraulic support, oilfield extraction machinery, mine/ road/construction machinery.

    Suitable for petroleum-based hydraulic oil.

    SURFACE:Wrapped surface,smooth surface

    TEMPERATURE RANGE:-40℃ (-104 ℉ ) to +100℃(+212 ℉)


    TYPE

    Dash size

    I.D

    O.D

    Working pressure

    Proof pressure

    Min Burst pressure

    Min Bend radius

    W.T

    W.P

    P. P

    B.P

    Min B.R

    mm

    1/16

    Inch

    Min

    Max

    Min

    Max

    Mpa

    Psi

    Mpa

    Psi

    Mpa

    Psi

    Inch

    mm

    Kg/m

    KS1703-03

    5

    -3

    3/16

    4.5

    5.4

    11.9

    13.5

    10.5

    1520

    21

    3050

    42

    6090

    2.95

    75

    0.16

    KS1703-04

    6.3

    -4

    1/4

    6.1

    7.0

    13.5

    15.1

    8.7

    1260

    17.5

    2540

    35

    5075

    2.95

    75

    0.18

    KS1703-05

    8

    -5

    5/16

    7.6

    8.5

    16.7

    18.3

    8.4

    1220

    16.8

    2440

    33.5

    4860

    3.94

    100

    0.27

    KS1703-06

    10

    -6

    3/8

    9.2

    10.1

    18.3

    19.8

    7.8

    1130

    15.7

    2280

    31.5

    4570

    3.94

    100

    0.31

    KS1703-08

    12.5

    -8

    1/2

    12.4

    13.5

    23.0

    24.6

    7

    1015

    14

    2030

    28

    4060

    4.92

    125

    0.45

    KS1703-10

    16

    -10

    5/8

    15.6

    16.7

    26.2

    27.8

    6.1

    885

    12.2

    1770

    24.5

    3550

    5.51

    140

    0.53

    KS1703-12

    19

    -12

    3/4

    18.7

    19.8

    31.0

    32.5

    5.2

    750

    10.5

    1520

    21

    3045

    5.91

    150

    0.72

    KS1703-16

    25

    -16

    1

    25.1

    26.2

    36.9

    39.3

    3.9

    570

    7.8

    1130

    15.7

    2280

    8.07

    205

    0.90

    KS1703-20

    31.5

    -20

    1-1/4

    31.4

    32.9

    42.9

    46.0

    2.6

    380

    5.2

    750

    10.5

    1520

    9.84

    250

    1.07
