Type E V-rings has a straight back that serves as an unpressurized axial rod seal with a very small mounting length and is fixed to the shaft. The flexible lip seals an opposing face at a right angle to the axis preventing dirt, dust and splashes from entering the construction. The V-Ring V-E is designed for heavy use and is applied in situations where larger axial tolerances are required. This profile is delivered for axles from Ø450 to Ø2010 mm.

The V-Ring V-E are heavy-duty, large-diameter V-ring seals that also allow for the largest axial displacements. They are commonly used as side seals and in rolling mills to exclude dirt and water. The V-Ring V-E styles can be stretched up to 2 1/2 times their original diameter as well.

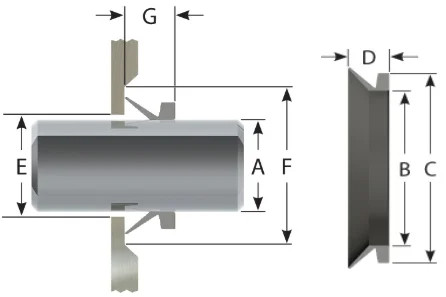

VE Style Size Chart

	A	B			A	B			A	B
Part Number	Shaft Diameter	Seal I.D.		Part Number	Shaft Diameter	Seal I.D.		Part Number	Shaft Diameter	Seal I.D.
VE 450	450.00-455.00	439.00		VE 670	670.00-680.00	650.00		VE 1040	1025.00-1045.00	990.00
VE 455	455.00- 460.00	444.00		VE 680	680.00- 690.00	660.00		VE 1060	1045.00- 1065.00	1008.00
VE 460	460.00- 465.00	448.00		VE 690	690.00- 700.00	670.00		VE 1080	1065.00- 1085.00	1027.00
VE 465	465.00- 470.00	453.00		VE 700	700.00- 710.00	680.00		VE 1100	1085.00-1105.00	1045.00
VE 470	470.00-475.00	458.00		VE 710	710.00-720.00	689.00		VE 1120	1105.00-1125.00	1065.00
VE 475	475.00-480.00	463.00		VE 720	720.00-730.00	699.00		VE 1140	1125.00-1145.00	1084.00
VE 480	480.00- 485.00	468.00		VE 730	730.00- 740.00	709.00		VE 1160	1145.00- 1165.00	1103.00
VE 485	485.00- 490.00	473.00		VE 740	740.00- 750.00	718.00		VE 1180	1165.00-1185.00	1121.00
VE 490	490.00- 495.00	478.00		VE 750	750.00-758.00	728.00		VE 1200	1185.00- 1205.00	1139.00
VE 495	495.00- 500.00	483.00		VE 760	758.00-766.00	735.00		VE 1220	1205.00-1225.00	1157.00
VE 500	500.00- 505.00	488.00		VE 770	766.00-774.00	743.00		VE 1240	1225.00- 1245.00	1176.00
VE 505	505.00- 510.00	493.00		VE 780	774.00- 783.00	751.00		VE 1260	1245.00- 1270.00	1195.00
VE 510	510.00- 515.00	497.00		VE 790	783.00- 792.00	759.00		VE 1280	1270.00-1295.00	1218.00
VE 515	515.00- 520.00	502.00		VE 800	792.00- 801.00	768.00		VE 1300	1296.00- 1315.00	1240.00
VE 520	520.00- 525.00	507.00		VE 810	801.00-810.00	777.00		VE 1325	1315.00-1340.00	1259.00
VE 525	525.00- 530.00	512.00		VE 820	810.00-821.00	786.00		VE 1350	1340.00- 1365.00	1281.00
VE 530	530.00- 535.00	517.00		VE 830	821.00- 831.00	796.00		VE 1375	1365.00- 1390.00	1305.00
VE 535	535.00- 540.00	521.00		VE 840	831.00- 841.00	805.00		VE 1400	1390.00- 1415.00	1328.00
VE 540	540.00- 545.00	526.00		VE 850	841.00-851.00	814.00		VE 1425	1415.00-1440.00	1350.00
VE 545	545.00- 550.00	531.00		VE 860	851.00-861.00	824.00		VE 1450	1440.00-1465.00	1374.00
VE 550	550.00- 555.00	536.00		VE 870	861.00-871.00	833.00		VE 1475	1465.00-1490.00	1397.00
VE 555	555.00- 560.00	541.00		VE 880	871.00- 882.00	843.00		VE 1500	1490.00- 1515.00	1419.00
VE 560	560.00- 565.00	546.00		VE 890	882.00- 892.00	853.00		VE 1525	1515.00- 1540.00	1443.00
VE 565	565.00- 570.00	550.00		VE 900	892.00-912.00	871.00		VE 1550	1540.00-1570.00	1467.00
VE 570	570.00-575.00	555.00		VE 920	912.00-922.00	880.00		VE 1575	1570.00-1600.00	1495.00
VE 575	575.00- 580.00	560.00		VE 930	922.00- 933.00	890.00		VE 1600	1600.00-1640.00	1524.00
VE 580	580.00- 585.00	565.00		VE 940	933.00- 944.00	900.00		VE 1650	1640.00- 1680.00	1559.00
VE 585	585.00- 590.00	570.00		VE 950	944.00- 955.00	911.00		VE 1700	1680.00-1720.00	1596.00
VE 590	590.00-600.00	575.00		VE 960	955.00-966.00	921.00		VE 1750	1720.00-1765.00	1632.00
VE 600	600.00-610.00	582.00		VE 970	966.00- 977.00	932.00		VE 1800	1765.00-1810.00	1671.00
VE 610	610.00-620.00	592.00		VE 980	977.00- 988.00	942.00		VE 1850	1810.00-1855.00	1714.00
VE 620	620.00-630.00	602.00		VE 990	988.00- 999.00	953.00		VE 1900	1855.00- 1905.00	1753.00
VE 630	630.00-640.00	612.00		VE 1000	999.00- 1010.00	963.00		VE 1950	1905.00- 1955.00	1794.00
VE 640	640.00-650.00	621.00		VE 1020	1010.00- 1025.00	973.00		VE 2000	1955.00- 2010.00	1844.00
VE 650	650.00-660.00	631.00
