1. Product introduction

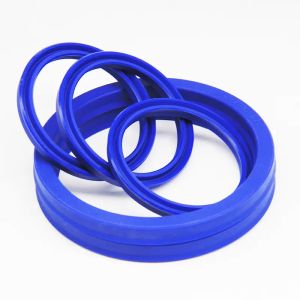

Manufacturer UN Polyurethane UHS Hole Shaft Piston Rod Seal
Dual-Purpose Hydraulic Oil Seals
Description of design
KLHPS-05 is a high-performance single-acting U-rod or piston
all-purpose seal that provides the driest seal in light - and
medium-load applications. The seals are injection molded with Hovoo
high performance U5203 material,easy to install and excellent low
temperature resistance.When used in conjunction with a
full-coverage retainer, the seal may be considered for heavy-duty
applications. Unique design seal lip Angle provides optimal sealing
performance.
2,Material analysis
NBR
Temperature range: -30°C to 125°C Hardness: 40-90A Color:
Customizable Application: Excellent oil resistance Advantages:
Excellent
oil resistance and stability, widely used, affordable price
FKM
Temperature range: 20°C to 250°C Hardness: 50-90A Color:
Black/brown/green, other colors can be customized Application:
Excellent
oil and chemical resistance Advantages: Wear resistance, acid and
alkali resistance, high temperature resistance.
SILICONE
Temperature range: 60°C to 225°C Hardness: 25-90A Color:
Red/transparent (clear)/white, etc. Application: Food grade
Advantages:
Good heat resistance, cold resistance, lubricating oil resistance,
and water resistance.
EPDM
Temperature range: 50°C to 150°C Hardness: 40-90A Color:
Customizable Advantages: Excellent ozone resistance, heat
resistance,
steam resistance, cold resistance, and LLC resistance.
NR
Temperature range: -44°C to 120°C Hardness: 60-90A Color:
Customizable Advantages: Excellent mechanical strength and fatigue
resistance.
HNBR
Temperature range: -30°C to 160°C Hardness: 50-90A Color: Black,
other colors can be customized Advantages: Excellent ozone
resistance, heat resistance, mechanical strength, and electrical
resistance compared to butadiene rubber.
3.product details
Surface TechnologyThe surface of theseal is bright
andtextured.without burrs
Accurate sizeThe seal isaccurate in size,small in error, andstrong
in sealing
CompletespecificationsVariousspecifications andcolors are available
4.Description of design
kelong U601 is a high-performance single-acting U-rod or piston
all-purpose seal that provides the driest seal in light - and
medium-load applications. The seals are injection molded with
kelong high performance U5203 material,easy to install and
excellent low temperature resistance.When used in conjunction with
a full-coverage retainer, the seal may be considered for heavy-duty
applications. Unique design seal lip Angle provides optimal sealing
performance.

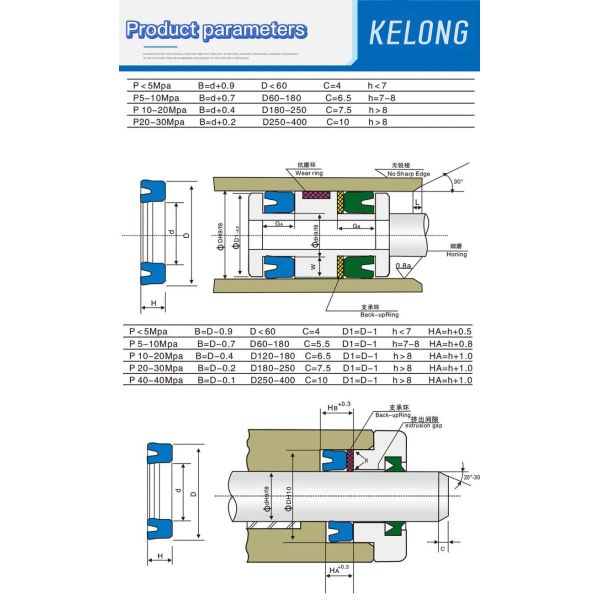

4,Product parameters
