    KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : KL50
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 100,000 pcs /months
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    KL50 Double Acting Piston Seal PTFE / NBR Hydraulic Piston Packing Seal

    KL50 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring and two O-ring energizers. K757 is the superior version of K753 and differentiates with the double o-ring design which increases sealing performance by optimizing the preload. Similar to KL48, KL50 is an ideal piston seal for systems which has two different media in the system seperated by the piston seal such as fluid and gas.

    Advantages

    • Able to work at variable media types, liquid-liquid or liquid-gas systems

    • Low friction

    • Low gas permeability

    • High resistance to variety of chemicals and high temperature with use of different elastomers

    • Design providing good sealing performance at variable pressures

    • Stick-slip free

    • Long service life

    • Resistance against high frequencies

    Area of Application

    • Piston accumulators

    • Hydro-pneumatic cylinders

    • Presses

    • Loading platforms

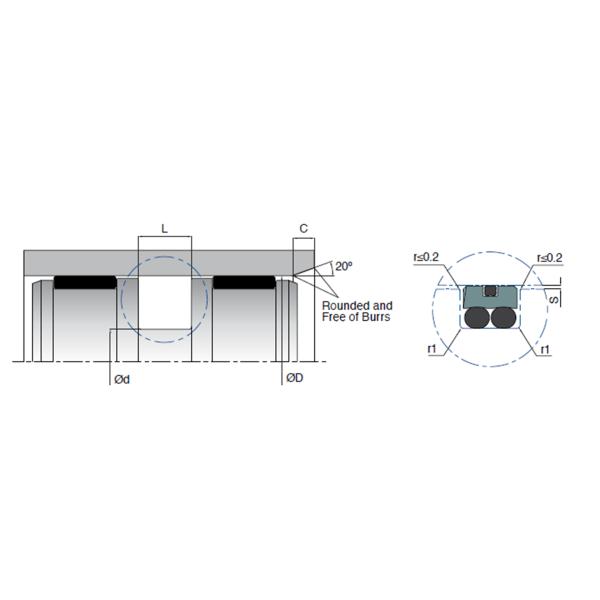

    D (H9)d (h9)L (+0.2/-0)r1CO-RingX-RingMATERIAL
    KL50-04040306.30.6328.25x2.6234.65x1.78PTFE
    KL50-04545356.30.6334.59x2.6241.00x1.78PTFE
    KL50-05050406.30.6339.34x2.6244.17x1.78PTFE
    KL50-05555456.30.6344.12x2.6250.52x1.78PTFE
    KL50-06060506.30.6348.90x2.6256.87x1.78PTFE
    KL50-06363536.30.6352.07x2.6256.87x1.78PTFE
    KL50-07070606.30.6358.42x2.6263.22x1.78PTFE
    KL50-08080678.31663.09x3.5372.69x2.62PTFE
    KL50-08585728.31669.85x3.5375.87x2.62PTFE
    KL50-09090778.31675.80x3.5382.22x2.62PTFE
    KL50-100100878.31685.32x3.5394.92x2.62PTFE
    KL50-105105928.31691.67x3.5394.92x2.62PTFE
    KL50-110110978.31694.84x3.53101.27x2.62PTFE
    KL50-1251251128.316110.72x3.53120.32x2.62PTFE
    KL50-1301301178.316113.90x3.53126.67x2.62PTFE
    KL50-15015013212.31.38130.20x5.33145.65x3.53PTFE
    KL50-16016014212.31.38139.07x5.33145.65x3.53PTFE
    KL50-18018016212.31.38158.12x5.33164.70x3.53PTFE
    KL50-21021019212.31.38189.87x5.33200.00x3.53PTFE
    KL50-22022020212.31.38202.57x5.33209.15x3.53PTFE
    KL50-25025023212.31.38227.97x5.33234.54x3.53PTFE
    KL50-28028026212.31.38253.57x5.33266.30x3.53PTFE
    KL50-30030028212.31.38278.77x5.33278.99x3.53PTFE
    KL50-32032030212.31.38291.47x5.33304.39x3.53PTFE
    KL50-45045043212.31.38425.00x5.33430.66x3.53PTFE
