    KDAS Hydraulic Cylinder Oil Seal DAS / KDAS Combination PU Material Hydraulic Piston Oil Seal

    Ask Lasest Price
    Brand Name : Kelong
    Model Number : KDAS / TPM / DPM
    Certification : ISO9001 / IRIS
    Payment Terms : L/C, T/T, Paypal
    Supply Ability : 100,000 pcs /months
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    KDAS Hydraulic Cylinder Oil Seal DAS / KDAS Combination PU Material Hydraulic Piston Oil Seal

    KDAS / TPM / DPM

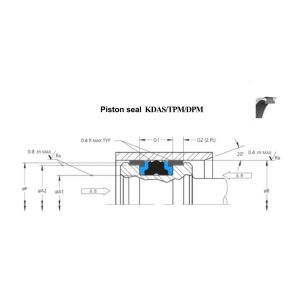

    Surface finish requirements:

    Contact surface: Ra≤0.3um

    Groove bottom: Ra≤1.8um

    Groove side: Ra≤3um

    Purpose and performance:

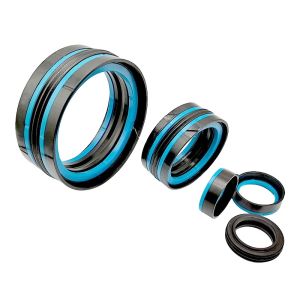

    The KDAS/TPM/DPM combination sealing ring includes an elastic toothed sealing ring, two back-up rings and two wear-resistant rings. There is a real sealing element in the middle; a back-up ring and a wear ring are placed on each side. The back-up ring prevents the sealing ring from being squeezed out into the gap; the middle sealing ring is a toothed sealing ring, which can provide good sealing effect both at rest and in motion. The function of the wear ring is to guide the piston in the cylinder and to withstand radial force. Beveled back-up rings and wear rings are easy to install and are suitable for combined seals installed in closed grooves.


    KDAS combined sealing ring is a double-acting piston sealing ring, suitable for sealing components in reciprocating hydraulic cylinders and pistons, such as: light bulldozers, injection molding machines, bottle blowing machines, cranes, forklifts, hydraulic valves and agricultural machinery, etc.


    Working conditions:

    Temperature range: -35~+150℃

    Working speed: 0.5m/s

    Working pressure: 35Mpa

    Medium: petroleum-based hydraulic oil, flame retardant fluid, environmentally friendly and safe hydraulic oil (bio-oil), water and others, depending on the material of the sealing ring.


    Standard materials:

    Teeth seal: nitrile rubber NBR

    Retaining ring: green-blue polyurethane elastomer containing additives

    Wear Ring: Reinforced Thermoplastic Polymer
